鸿蒙应用调整屏幕方向（竖屏，横屏，反向横屏，反向竖屏）¶

2025-08-22 创建文档

2025-08-22 创建文档

开发环境

DevEco Studio 5.1.0 Release
ArkTS
nova14（HarmonyOS NEXT 5.1.0）

示例项目的配置¶

"modelVersion": "5.0.5"
"targetSdkVersion": "5.0.5(17)"
"compatibleSdkVersion": "5.0.5(17)"
"runtimeOS": "HarmonyOS"

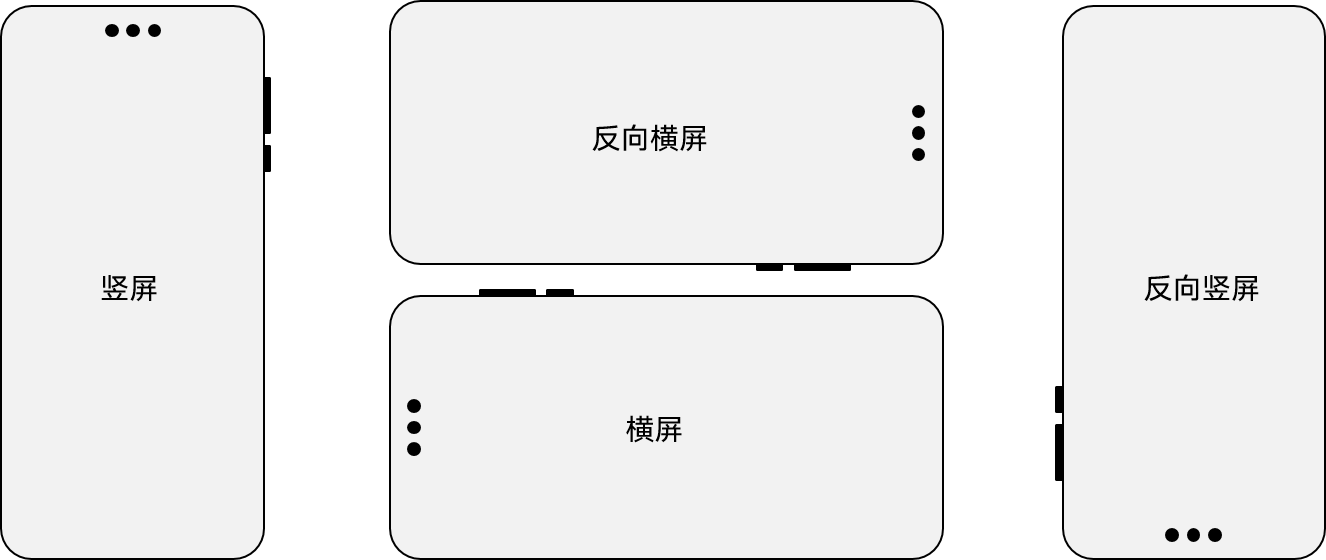

鸿蒙应用屏幕方向示意图（来源鸿蒙官网）

鸿蒙应用屏幕方向示意图

应用预设为横屏¶

在entry/src/main/module.json5中设定应用的默认方向 "orientation": "landscape"

{
  "module": {
    "abilities": [
      {
        "orientation": "landscape",

代码中调整屏幕的方向¶

使用的ArkUI的window

主要使用方法：

window.getPreferredOrientation() 获取当前屏幕方向
window.setPreferredOrientation 设置屏幕方向

获取窗口

  private context = this.getUIContext().getHostContext() as common.UIAbilityContext;
  private windowClass = (this.context).windowStage.getMainWindowSync()

先获取当前方向，然后设置切换到下一个方向

href="#__codelineno-2-1"> /** * 切换到下一个方向 */ private changeNextOrientation(windowClass: window.Window) { if (windowClass.getPreferredOrientation() == window.Orientation.LANDSCAPE) { windowClass.setPreferredOrientation(window.Orientation.PORTRAIT) .then(() => { hilog.info(1, "main", "切换成功" + windowClass.getPreferredOrientation()); }).catch((err: Error) => { hilog.error(1, "main", "切换fail" + err); }); } else if (windowClass.getPreferredOrientation() == window.Orientation.PORTRAIT) { windowClass.setPreferredOrientation(window.Orientation.LANDSCAPE_INVERTED) .then(() => { hilog.info(1, "main", "切换成功" + windowClass.getPreferredOrientation()); }).catch((err: Error) => { hilog.error(1, "main", "切换fail" + err); }); } else if (windowClass.getPreferredOrientation() == window.Orientation.LANDSCAPE_INVERTED) { windowClass.setPreferredOrientation(window.Orientation.PORTRAIT_INVERTED) .then(() => { hilog.info(1, "main", "切换成功" + windowClass.getPreferredOrientation()); }).catch((err: Error) => { hilog.error(1, "main", "切换fail" + err); }); } else { // - 横屏 windowClass.setPreferredOrientation(window.Orientation.LANDSCAPE) .then(() => { hilog.info(1, "main", "切换成功" + windowClass.getPreferredOrientation()); }).catch((err: Error) => { hilog.error(1, "main", "切换fail" + err); }); } }

实例页面的完整代码如下：

import { common } from '@kit.AbilityKit'
import { window } from '@kit.ArkUI'
import { hilog } from '@kit.PerformanceAnalysisKit';

@Entry
@Component
struct Index {
  @State message: string = 'Hello World';
  private context = this.getUIContext().getHostContext() as common.UIAbilityContext;
  private windowClass = (this.context).windowStage.getMainWindowSync()

  build() {
    RelativeContainer() {
      Text(this.message)
        .id('HelloWorld')
        .fontSize($r('app.float.page_text_font_size'))
        .fontWeight(FontWeight.Bold)
        .alignRules({
          center: { anchor: '__container__', align: VerticalAlign.Center },
          middle: { anchor: '__container__', align: HorizontalAlign.Center }
        })
        .onClick(() => {
          this.message = 'Welcome';
          hilog.info(1, "main", "当前：" + this.windowClass.getPreferredOrientation());
          this.changeNextOrientation(this.windowClass);
        })
    }
    .height('100%')
    .width('100%')
  }

  /**
   * 切换到下一个方向
   */
  private changeNextOrientation(windowClass: window.Window) {
    if (windowClass.getPreferredOrientation() == window.Orientation.LANDSCAPE) {
      windowClass.setPreferredOrientation(window.Orientation.PORTRAIT)
        .then(() => {
          hilog.info(1, "main", "切换成功" + windowClass.getPreferredOrientation());
        }).catch((err: Error) => {
        hilog.error(1, "main", "切换fail" + err);
      });
    } else if (windowClass.getPreferredOrientation() == window.Orientation.PORTRAIT) {
      windowClass.setPreferredOrientation(window.Orientation.LANDSCAPE_INVERTED)
        .then(() => {
          hilog.info(1, "main", "切换成功" + windowClass.getPreferredOrientation());
        }).catch((err: Error) => {
        hilog.error(1, "main", "切换fail" + err);
      });
    } else if (windowClass.getPreferredOrientation() == window.Orientation.LANDSCAPE_INVERTED) {
      windowClass.setPreferredOrientation(window.Orientation.PORTRAIT_INVERTED)
        .then(() => {
          hilog.info(1, "main", "切换成功" + windowClass.getPreferredOrientation());
        }).catch((err: Error) => {
        hilog.error(1, "main", "切换fail" + err);
      });
    } else {
      // - 横屏
      windowClass.setPreferredOrientation(window.Orientation.LANDSCAPE)
        .then(() => {
          hilog.info(1, "main", "切换成功" + windowClass.getPreferredOrientation());
        }).catch((err: Error) => {
        hilog.error(1, "main", "切换fail" + err);
      });
    }
  }
}

屏幕方向：

横屏 window.Orientation.LANDSCAPE
竖屏 window.Orientation.PORTRAIT_INVERTED
反向横屏 window.Orientation.LANDSCAPE_INVERTED
反向竖屏 window.Orientation.PORTRAIT_INVERTED

参考：
