使用RecyclerView来创建一个颜色选择板。

实现的效果

  • 能够添加多个颜色,数量不定;能够滑动
  • 选择板的选项有点击选中效果

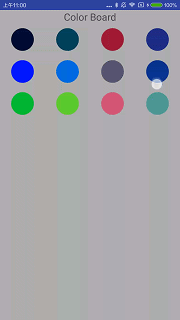

效果图如下:

ColorBoard

实现代码

Files Function
CircleImageView.java 自定义UI——圆点;这里是一个能改变颜色的圆点
ColorBoardListAdapter.java RecyclerView.Adapter;用于适配
color_item_view.xml 圆点的布局文件
attr.xml 圆点的自定义属性
ColorBoardActivity.java 用于演示
activity_color_board.xml 用于演示

给RecyclerView设定点击事件,获取点击position;然后通知各个item,改变状态
圆点的大小和背景大小是预先设定好的。

代码片段说明

CircleImageView.java 自定义圆点UI;一定要复写setSelected(boolean selected)方法

    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);
        mPaint.setAntiAlias(true);
        mPaint.setStyle(Paint.Style.FILL);
        mPaint.setStrokeWidth(1.5f);
        if (mSelected) {
            mPaint.setColor(Color.WHITE);// 若被选中,则画一个圆形背景
            canvas.drawCircle(getWidth() / 2, getHeight() / 2, mRadius, mPaint);
        }
        mPaint.setColor(mColor);
        canvas.drawCircle(getWidth() / 2, getHeight() / 2, mRadius - 10, mPaint);
    }

    @Override
    public void setSelected(boolean selected) {
        mSelected = selected;// 确定此UI是否被选中
        super.setSelected(selected);
        invalidate();
    }

ColorBoardListAdapter.java适配器中默认点中的item position为-1

    // 供外部调用,获取点击的position;通知item更改
    public void setSelectedPosition(int position) {
        this.mSelectedPosition = position;
        notifyDataSetChanged();
        notifyItemChanged(position);
    }
// ......
    @Override
    public void onBindViewHolder(ViewHolder holder, final int position) {
        holder.mImageView.setColor(mDataList.get(position).color);
        holder.mImageView.setSelected(mSelectedPosition == position);// 判断是否被选中
        if (mOnItemClickListener != null) {
            holder.mImageView.setOnClickListener(new View.OnClickListener() {
                @Override
                public void onClick(View v) {
                    mOnItemClickListener.onItemClick(v, position);
                }
            });
            holder.mImageView.setOnLongClickListener(new View.OnLongClickListener() {
                @Override
                public boolean onLongClick(View v) {
                    mOnItemClickListener.onItemLongClick(v, position);
                    return true;
                }
            });
        }
    }

ColorBoardActivity.java设定点击事件,然后传回点击position

    private void initColorBoard() {
        final ArrayList<ColorBoardListAdapter.ColorItemViewEntity> colorItemEntities = new ArrayList<>();
        colorItemEntities.add(new ColorBoardListAdapter.ColorItemViewEntity(1, Color.rgb(0, 10, 50)));
        // 想加几个加几个......

        GridLayoutManager gridLayoutManager = new GridLayoutManager(this, 3);// 3行
        gridLayoutManager.setOrientation(LinearLayoutManager.HORIZONTAL);
        mColorBoard.setLayoutManager(gridLayoutManager);
        final ColorBoardListAdapter ColorBoardListAdapter = new ColorBoardListAdapter(colorItemEntities);
        ColorBoardListAdapter.setOnItemClickListener(new ColorBoardListAdapter.OnItemClickListener() {
            @Override
            public void onItemClick(View view, int position) {
                int clickID = colorItemEntities.get(position).id;
                int color = colorItemEntities.get(position).color;
                ColorBoardListAdapter.setSelectedPosition(position);// 点击item位置传回去
                Log.d(TAG, "onItemClick: " + clickID + ";  color = " + color);
            }

            @Override
            public void onItemLongClick(View view, int position) {

            }
        });
        mColorBoard.setAdapter(ColorBoardListAdapter);
    }

使用RecyclerView,添加子项非常方便。扩展也很方便。

项目地址: https://github.com/RustFisher/aboutView

参考: http://stackoverflow.com/questions/27194044/how-to-properly-highlight-selected-item-on-recyclerview

RecyclerView滑动时忽略间隔

RecyclerView内容没有填满时,有一个padding间隔。内容增加后,可以开始滑动。

滑动时可以盖过原来的padding间隔。需要设置android:clipToPadding="true"

    <android.support.v7.widget.RecyclerView
        android:id="@+id/rv"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_marginBottom="4dp"
        android:clipToPadding="true"
        android:paddingEnd="12dp"
        android:paddingStart="12dp" />
